Heat Shrink Wrap Tubing Sleeve, 1/2" down to 1/4", Sold Per Foot

Heat Shrink Wrap Tubing Sleeve, 1/2" down to 1/4", Sold Per Foot
SOLD PER FOOT

Alternative Views:
SOLD PER FOOT
Our Price: $1.95


PART NUMBER: WIR-8247
Qty:

Description

Heat Shrink Wrap Tubing Sleeve, 1/2" down to 1/4", Sold Per Foot

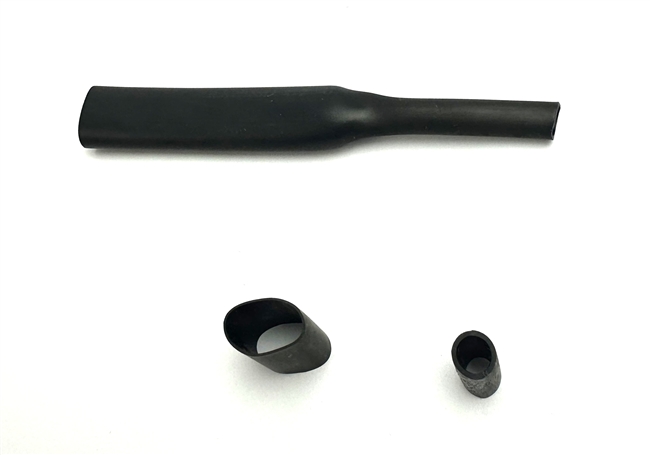

New premium quality USA made Heat Shrink Wrap Tubing now sold by the foot. Perfect for Automotive, Marine, Aerospace, and Aviation projects. Specially formulated for optimum high-temperature fluid resistance, and long term heat resistance. Works wonderful for battery cables. Goes from 1/2 inch down to 1/4 inch, as pictured.

Resistant to aviation and diesel fuels, hydraulic fluids and lubricating oils. Particularly suitable as a jacketing material for vehicle cables and harnesses. It is also well suited for the demands of motorsport cable harnesses.
Installation:
  • Minimum shrink temperature: 150°C [302°F]
  • Minimum full recovery temperature: 175°C [347°F]
  • Operating Temperature Range -75°C to 150°C [-103°F to 302°F]
* Sold by the foot, so don't forget to check your quantity. If you order ten, you will receive one piece, ten feet long.

PART NUMBER: WIR-8247
Features
  • Material: Elastomer
  • Inside Diameter: 12.7 mm
  • Recovered Diameter: 6.4 mm
  • Shrink Ratio: 2:1
  • Series: DR-25
  • Chemical Resistant: Yes
  • Minimum Shrink Temperature: + 175 C
  • Brand: TE Connectivity / Raychem
  • Flammability Rating: Flame Retardant
  • Maximum Temperature: + 150 C
  • Maximum Operating Temperature: + 150 C
  • Minimum Operating Temperature: - 75 C
  • Product Type: Heat Shrink Tubing and Sleeves
