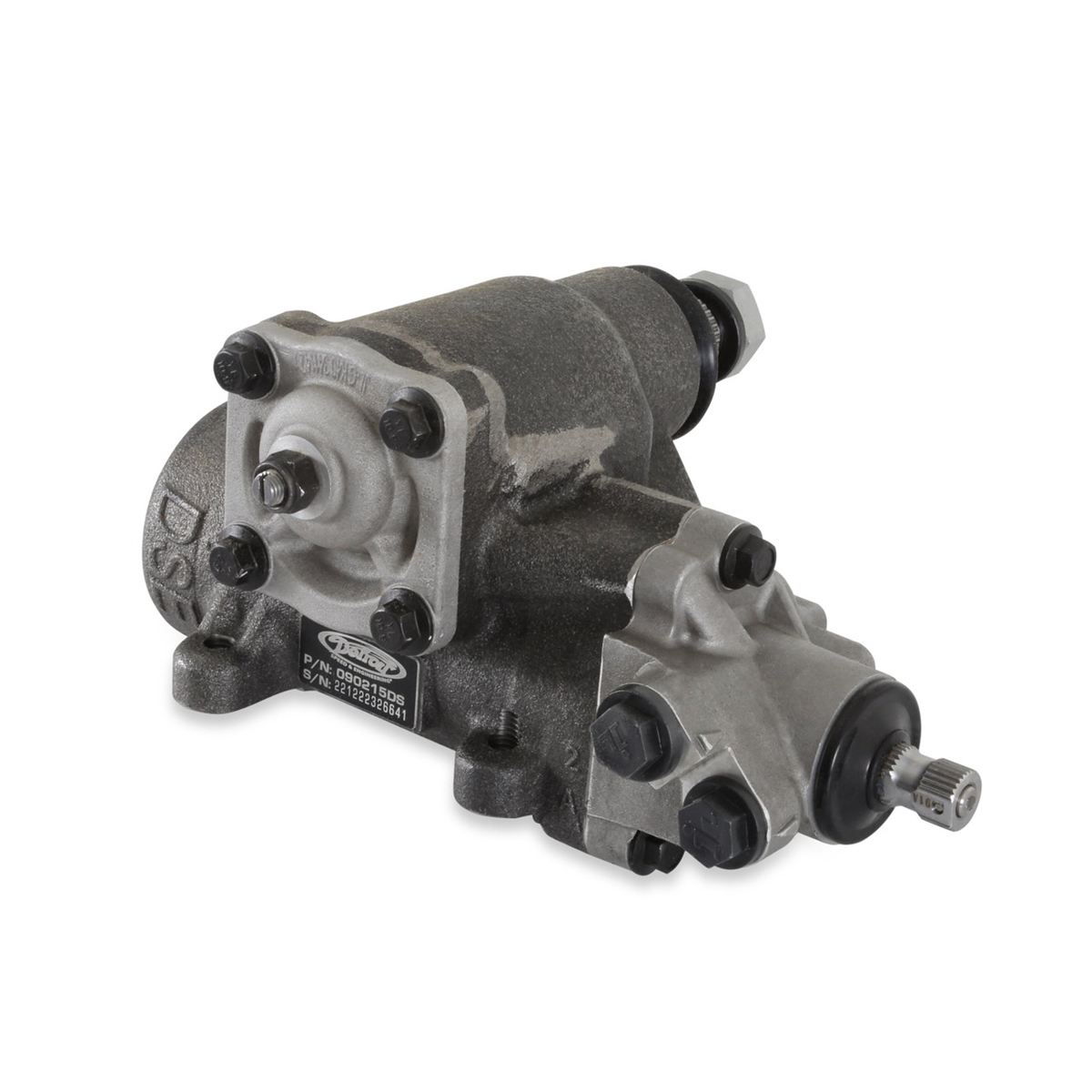

1967 - 1992 Firebird Detroit Speed 12.7:1 Ratio Power Steering Box
The Detroit Speed quick ratio steering gearbox provides modern late-model steering performance similar to a rack & pinion with easy bolt-in installation. This steering box can replace the GM/Delphi 800 series or GM/Delphi 600 series power steering box. It has a raw unpainted finish. Upgrade the steering on your 1967 - 1992 Camaro today!
FEATURES AND BENEFITS
- All-new steering gear unit, not rebuilt
- Fits 1982–92 Camaro/Firebird with no modification to the steering box or the frame
- Improved steering feel due to low-friction gear design
- “Detroit Tuned” precision rack and pinion valve technology
- Late-model performance car feel
- Quick Ratio 12.7:1 (3 turns lock-to-lock) – desirable quick ratio that is hard to find in a stock OEM steering box
- Original power pitman arm may be used – or SUS-27 (for 1967–1969 Camaro & 1968–1972 Nova)
- A 3/4-inch x 30-spline (3-1/4" OD) rag joint may be required with this steering box or (PN: POW-411)
- New O-ring style power steering hoses are needed – (PN: POW-349) recommended
- Raw unpainted finish
- Recommended pump flow: 2.48 GPM
- Maximum operating pressure: 1500 psi
*See the Extended Information Tab for Detailed Installation Instructions!
Fitment Notes:
This DSE steering box can replace the GM/Delphi 800 series power steering gearbox on 1964–1992 GM vehicles. It is also a direct replacement for the GM/Delphi 600 series box. A steering shaft kit will be needed for 1978–1988 G-Body and 1982–1992 Camaro/Firebird applications (PN: 092519DS). If the vehicle has manual steering, a replacement power steering pitman arm will be needed (PN: SUS-27 for 1967–1969 Camaro & 1968–1972 Nova).
A 3/4" x 30-spline rag joint is required (PN: POW-411). For 1978–81 Camaro/Firebird, a stock replacement 2-3/4" OD rag joint is needed. Detroit Speed hose kit (PN: POW-349) can be used with this steering box.
*NO CORE CHARGE
*BRAND NEW WITH NEW PREMIUM QUALITY PARTS
*BRAND NEW BOX AT A GREAT PRICE
Fits: 1967–1992 GM F-Body (Camaro/Firebird)1964–1981 GM A-Body (Chevelle, El Camino, Skylark, Tempest, Cutlass, LeMans, etc.)
1968–1979 GM X-Body (Nova, Ventura, Omega, Apollo)
1978–1988 GM G-Body (Monte Carlo, El Camino, Regal, Bonneville, Grand Prix, etc.)
1982–2004 S10/S15/Sonoma... and more!!
Part Number: POW-410
